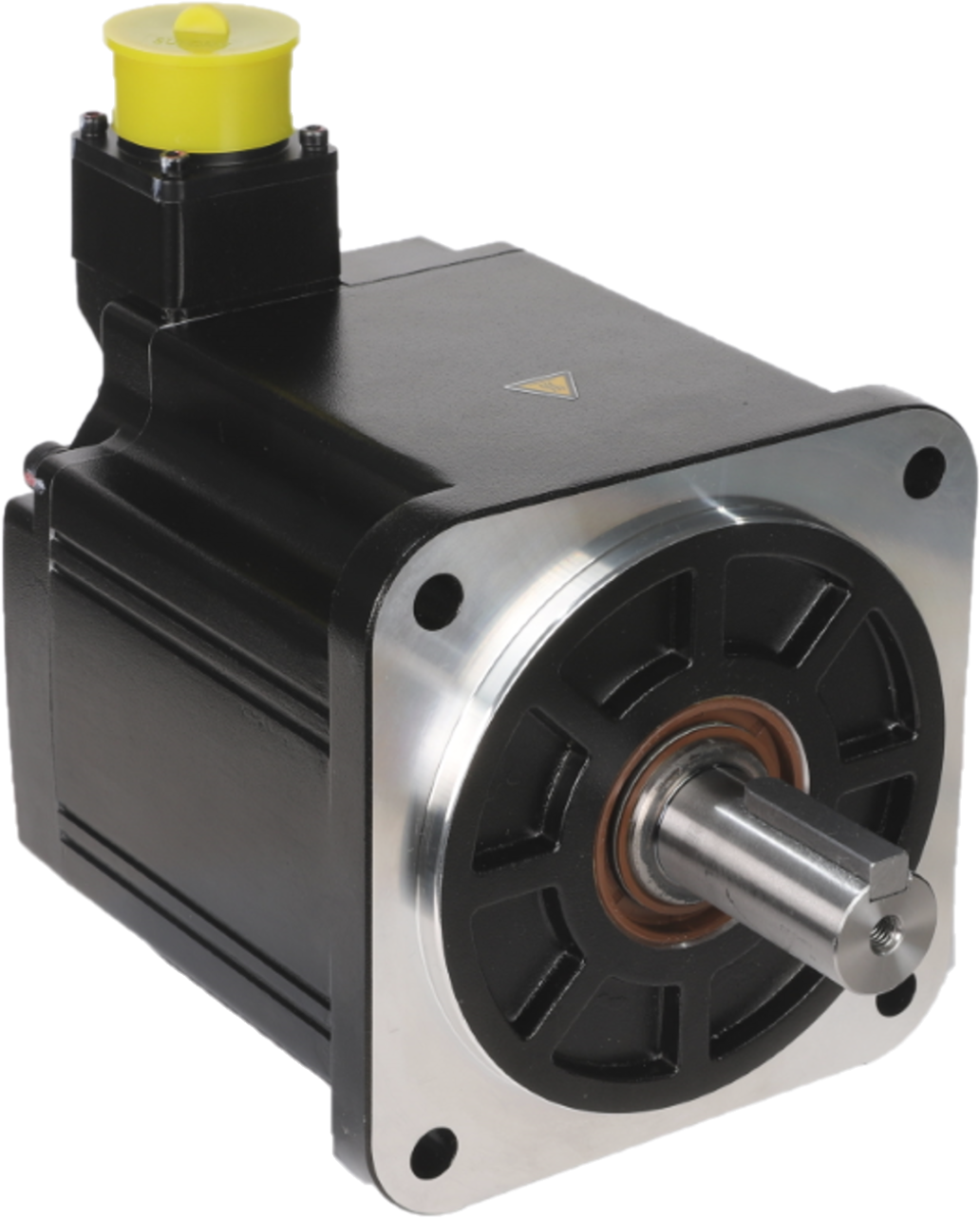

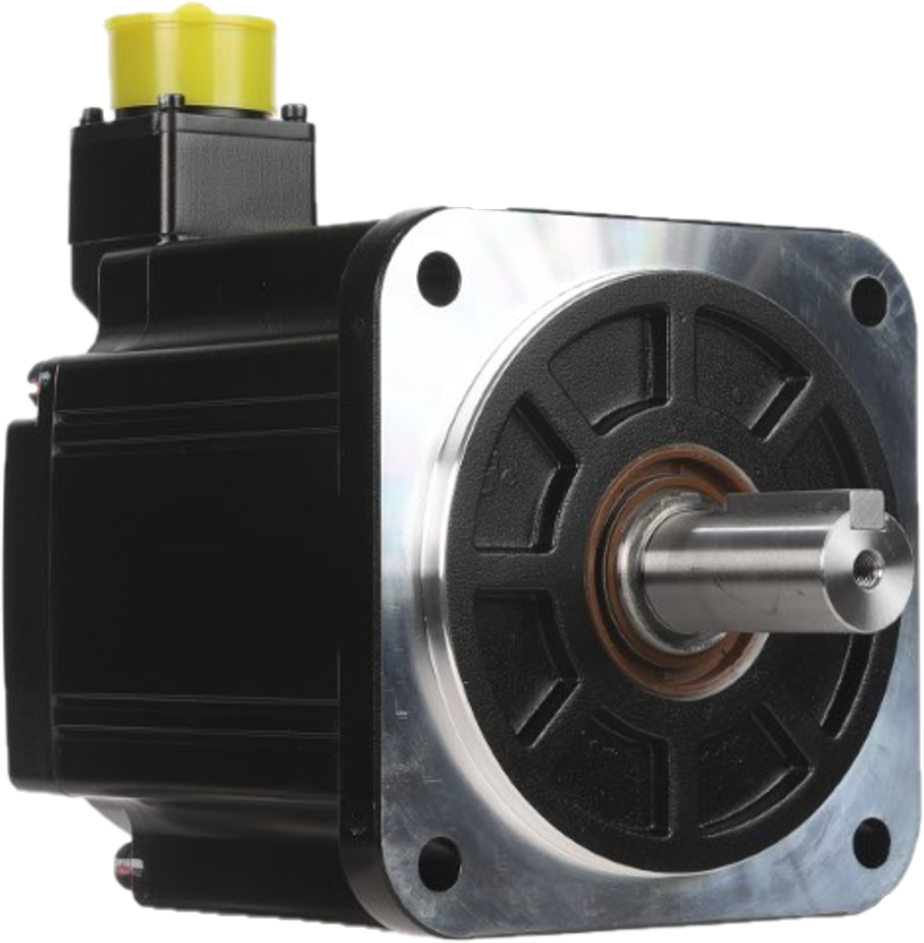

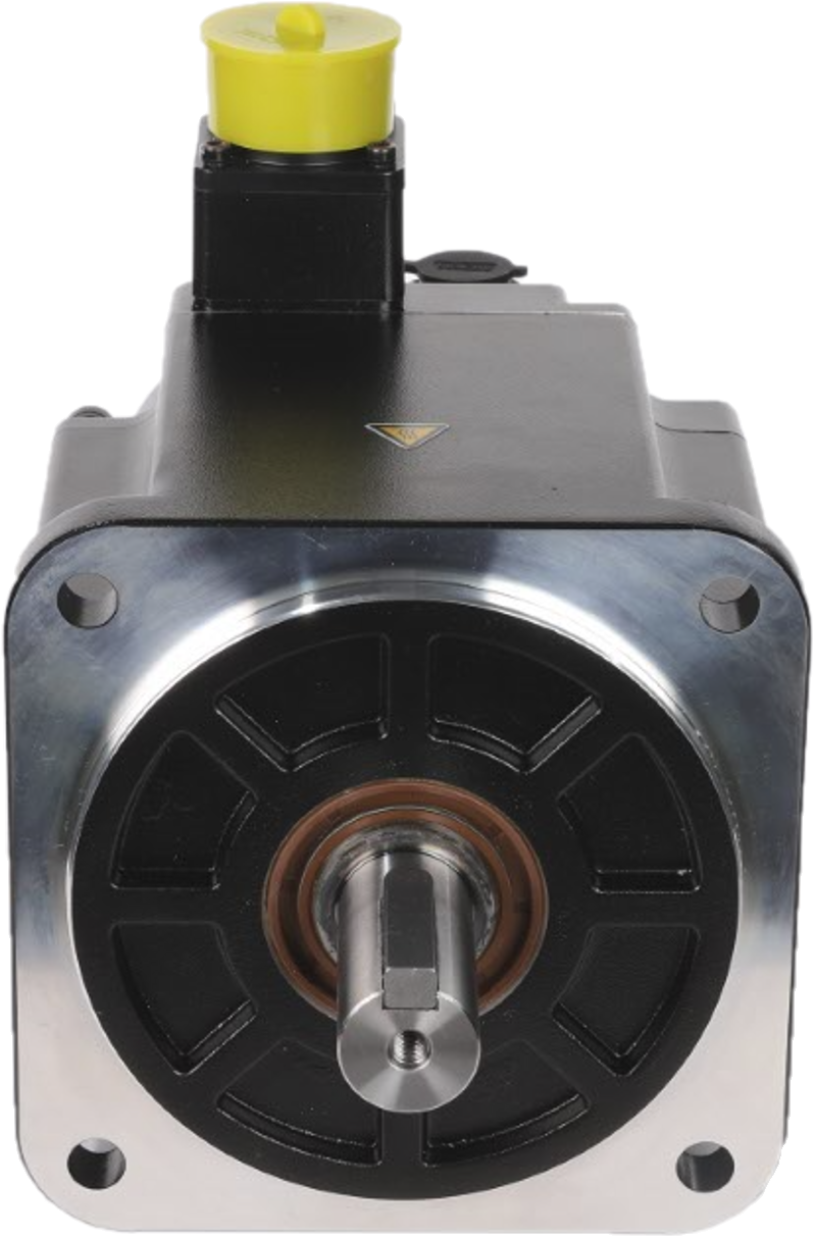

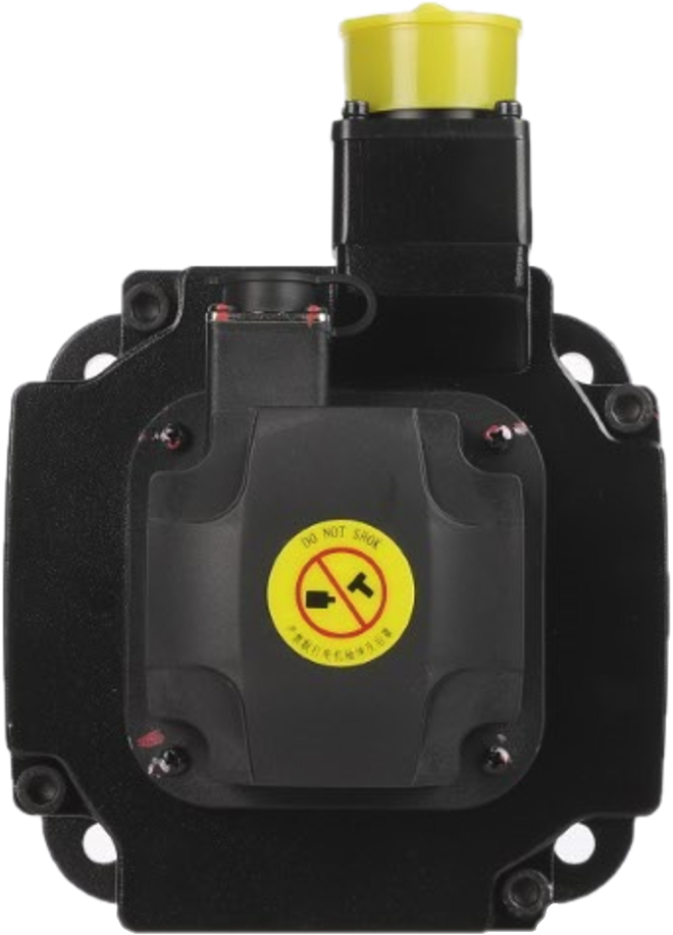

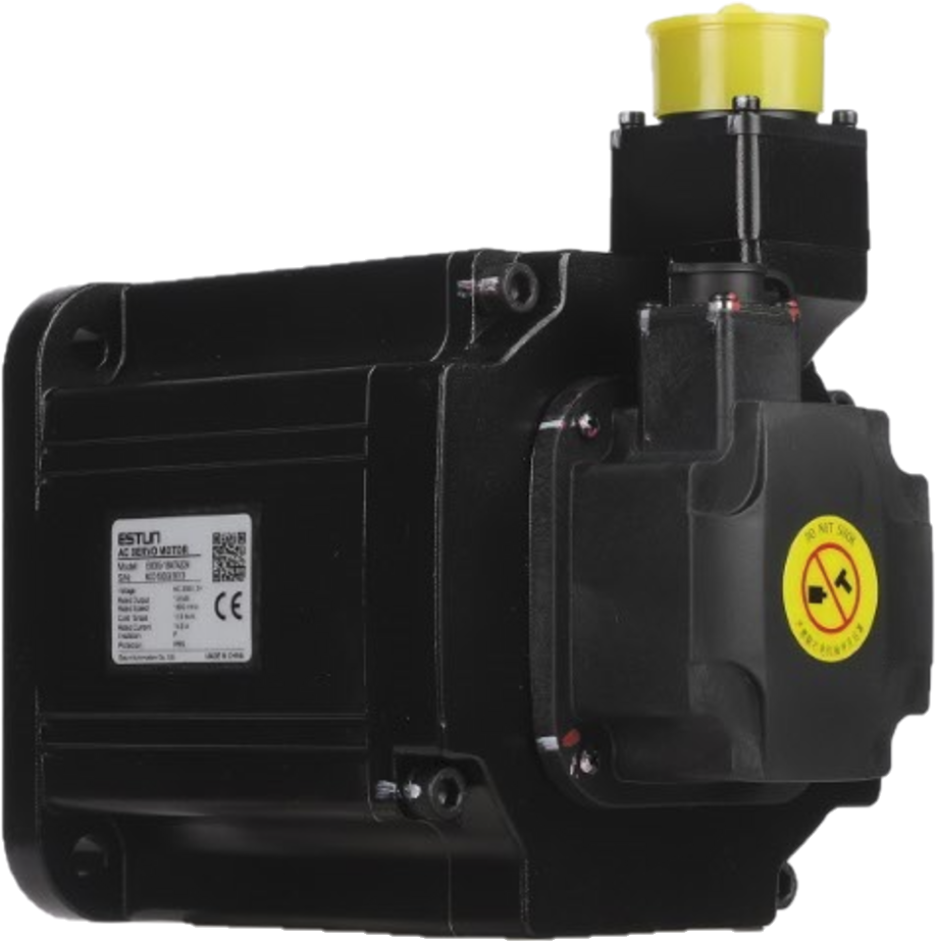

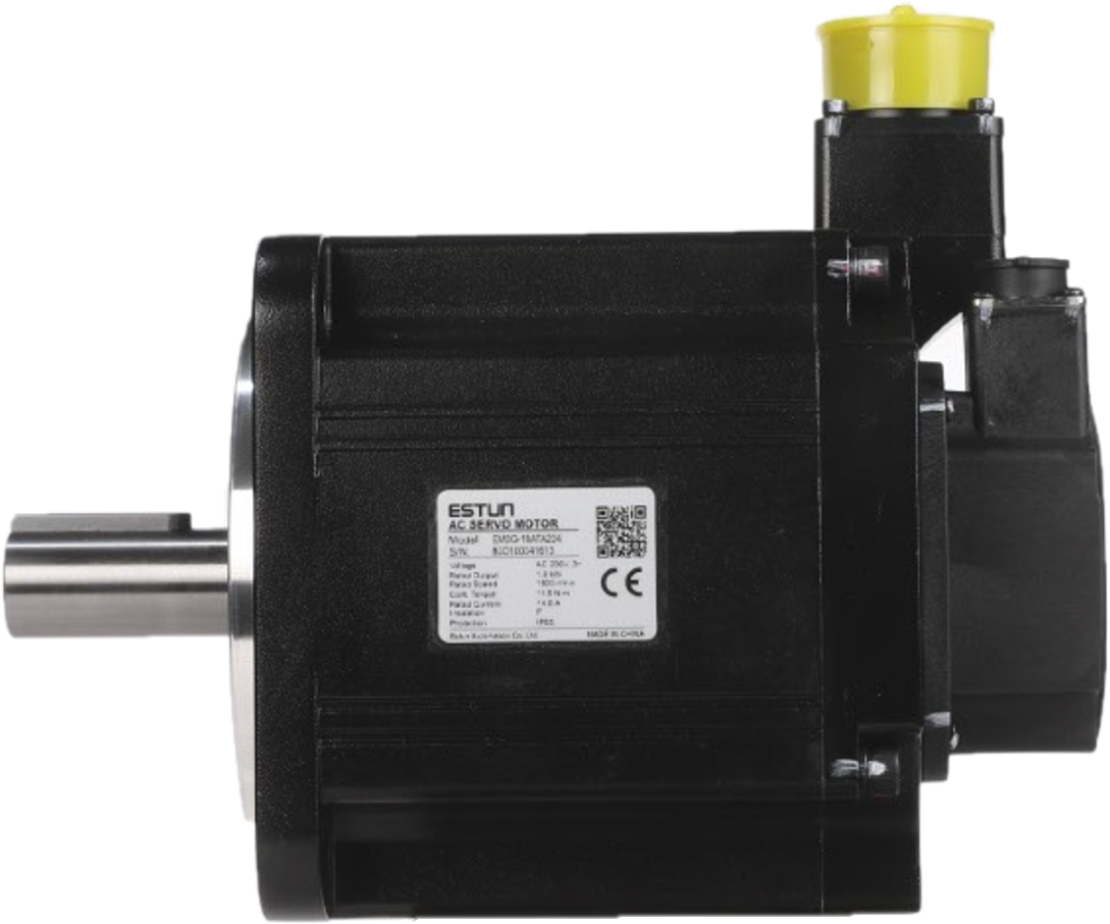

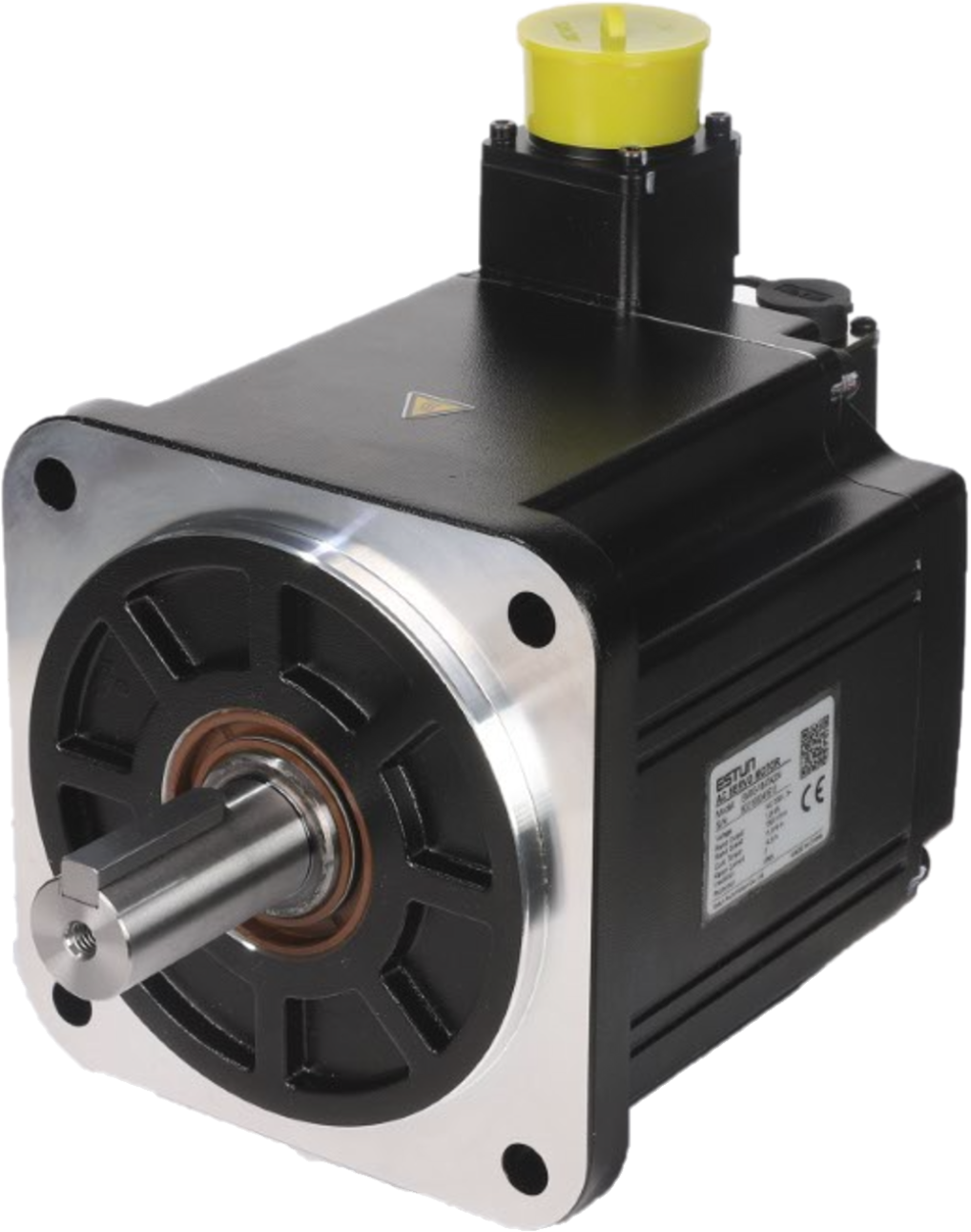

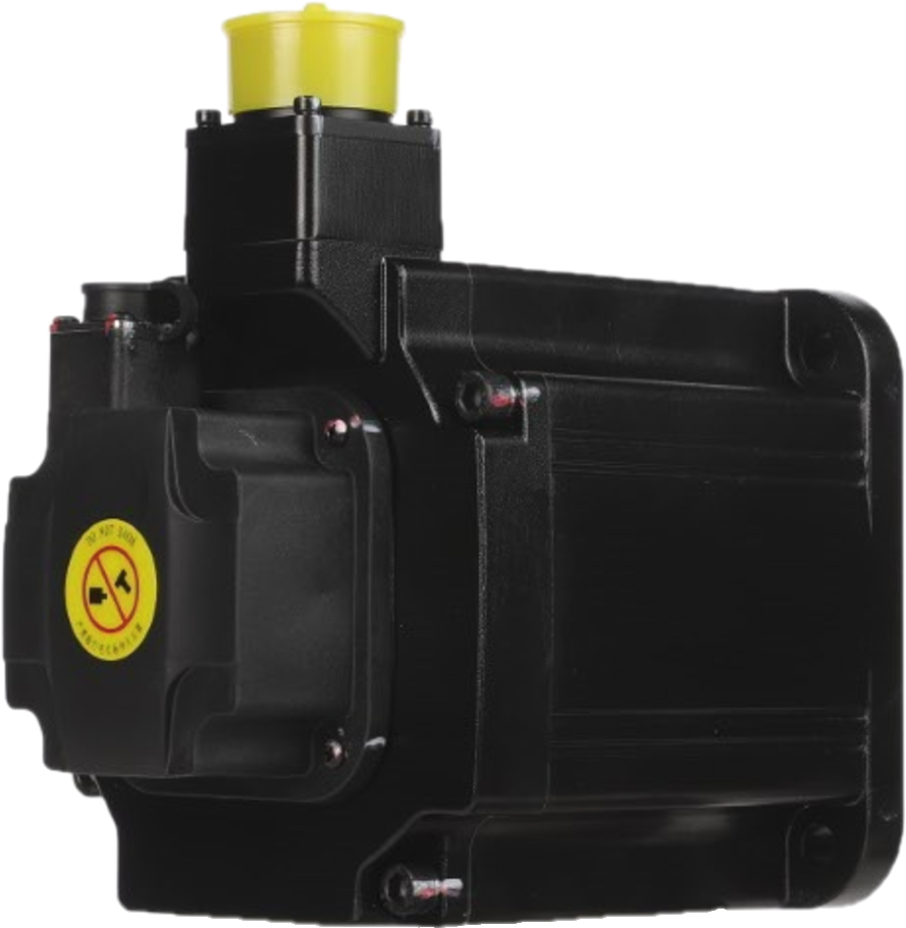

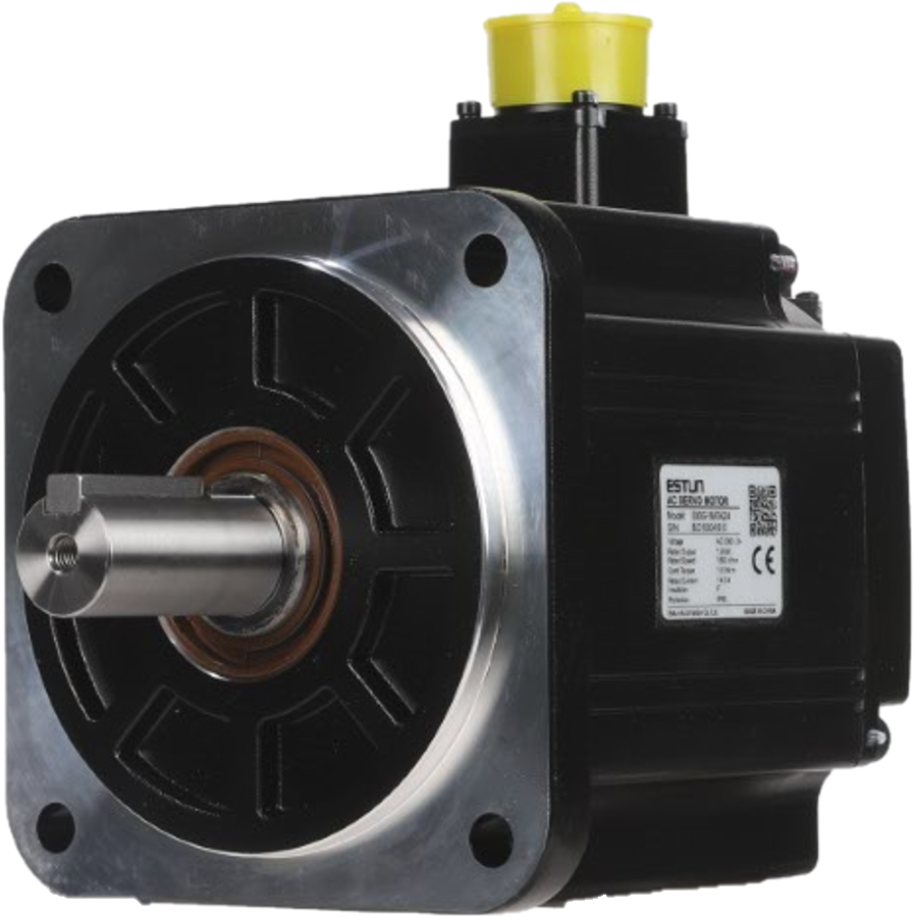

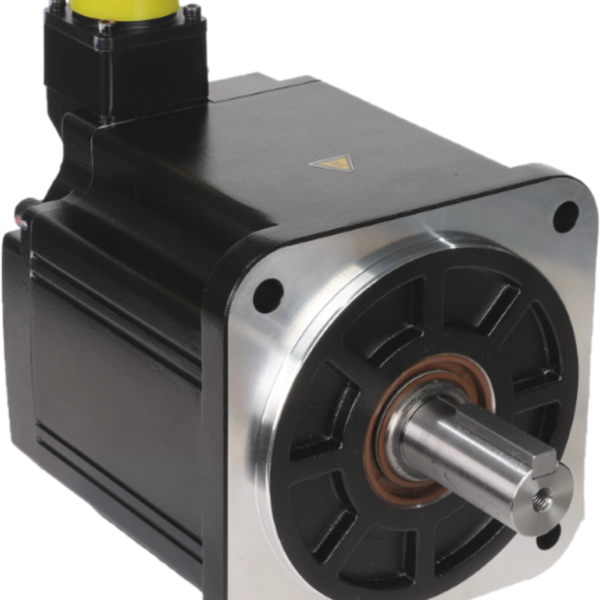

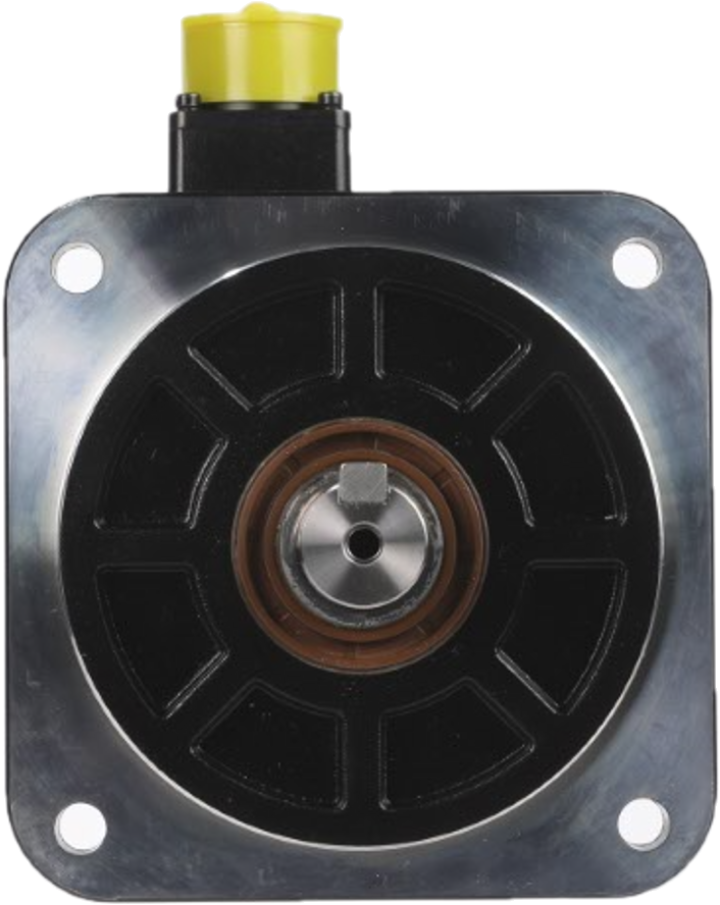

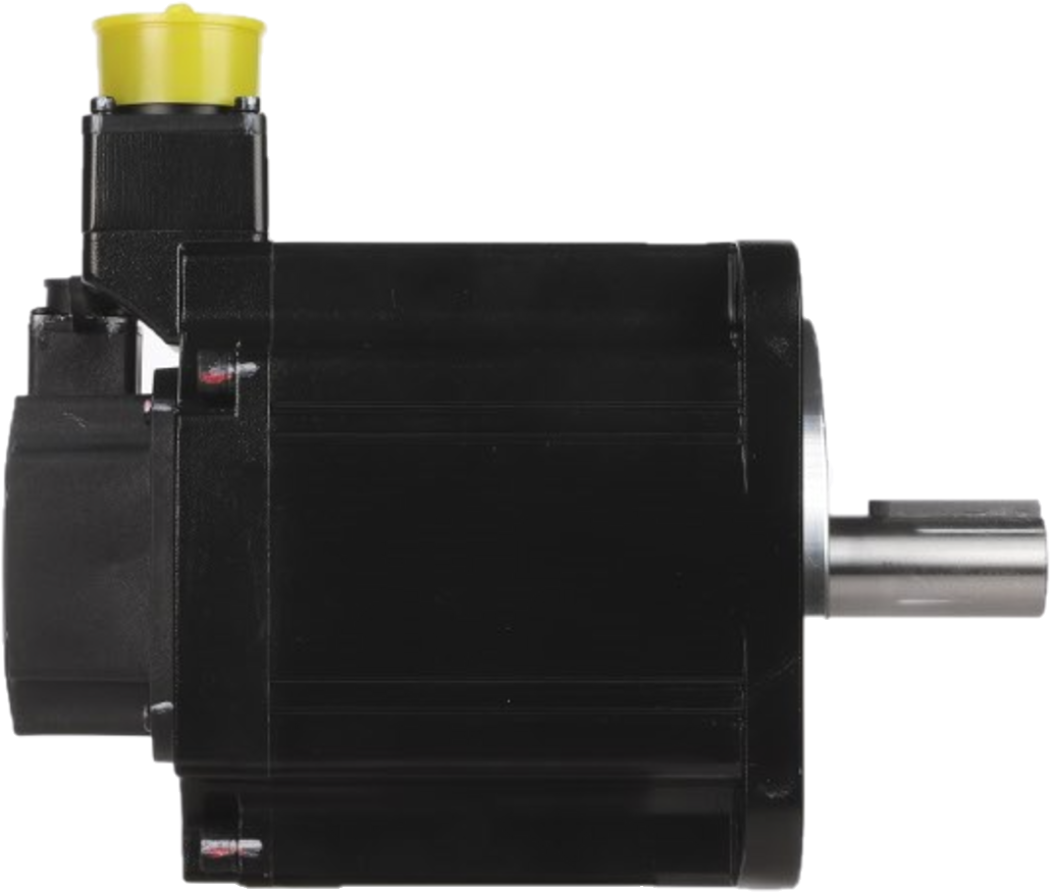

EM3G-18DTA224
- Servo motor with a power rating of 1.8KW to pair only with Estun Drive.
- Medium Inertia: Provides enough Torque & Inertia for Loads required high torque at low speed
- 17bit Absolute /Incremental Encoder feedback
- Insulation Class F with Self Cooling
- Suitable for applications requires speeds up to 3000 rpm
- Without Electro-Mechanical Brake and standard Oil seal
- Small sizes with high Torque
- IP65 rated
This product is available & ready to ship.
13
People watching this product now!
Description
EM3G-18DTA224 is a 1.8KW1.8KW Rotary Servo Motor with small size, medium speed (1500 rpm rated/ 3000 rpm max) with 17bit abs/Inc feedback and medium inertia that provides easier tuning for heavy loads with enough torque.
Specification
 Motor MODEL: EM3G-18DTA224 |
||
| Flange [mm] | 130 | |
| Rated power [kW] | 1.8 | |
| Rated speed[r/min] | 1500 | |
| Maximum speed [r/min] | 3000 | |
| Rated torque [N.m] | 11.5 | |
| Maximum torque [N.m] | 31.0 | |
| Rated Voltage [V] | 400 | |
| Rated current [Arms] | 7.1 | |
| Maximum current [Arms] | 21.2 | |
| Motor inertia [ kg. ] | 22.3 | |
| Allowable shaft end load | Radial[N] | 980 |
| Axial[N] | 392 | |
| Holding torque [N.m] | ≥20 | |
| Motor Weight [kg] | 8.3 | |
| Motor Packing Weight[kg] | 9.3 | |
| Motor Box Dimensions [mm] | 359 x 279 x 172 | |
Torque/Speed Curve
| Rated Power (W) |
1800 |
|---|---|
| Rated Voltage (V) |
400 |
| Rated / Max Speed (rpm) |
1500 / 3000 |
| Rated / Max Torque (N.M) |
11.50 / 31.00 |
| Flange / Shaft Size (mm) |
130 / 22 |
| Feedback Type |
17bit abs |
| Brake |
No |
