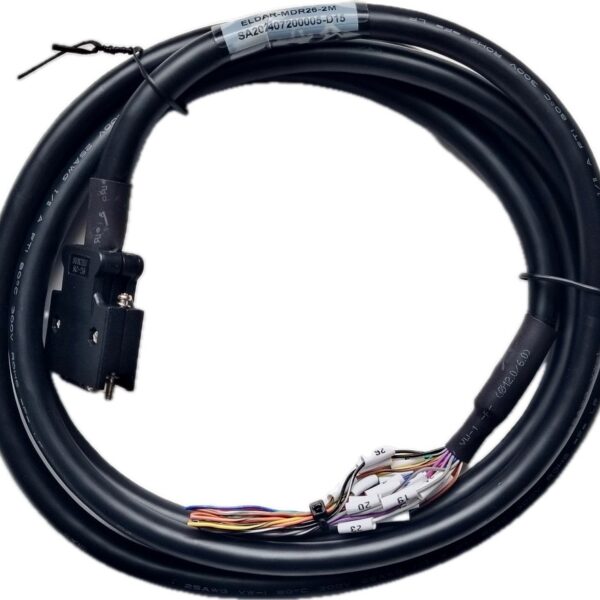

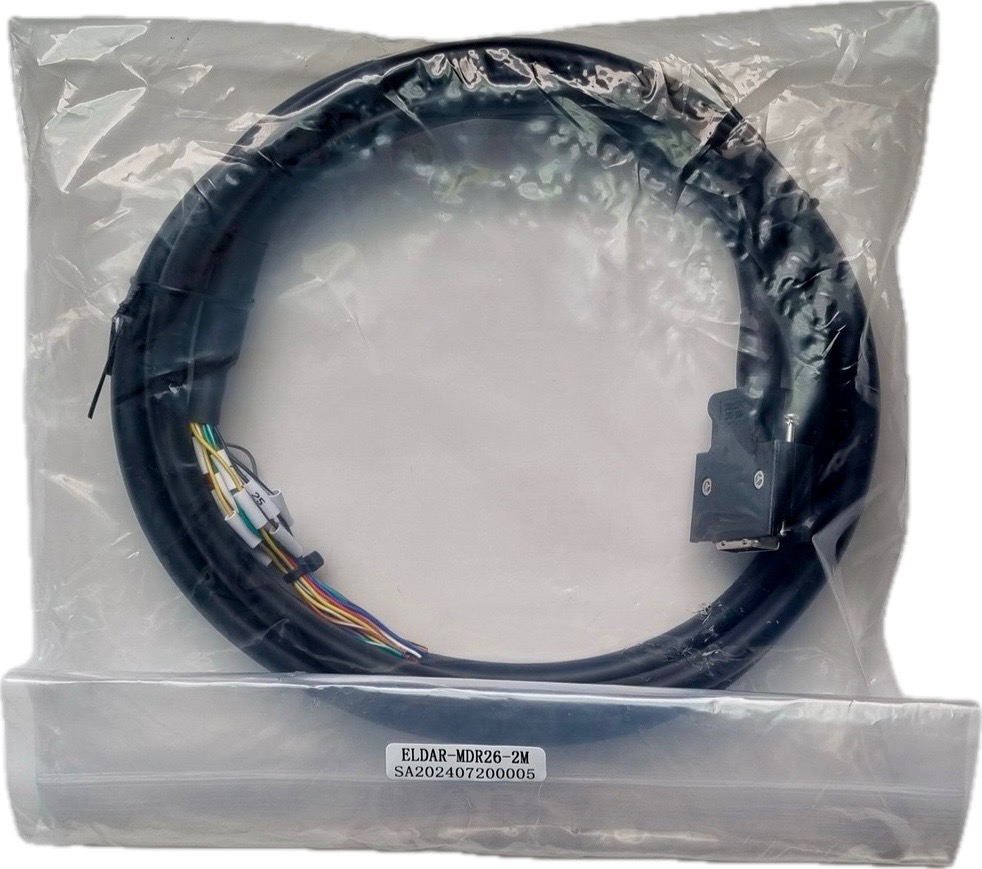

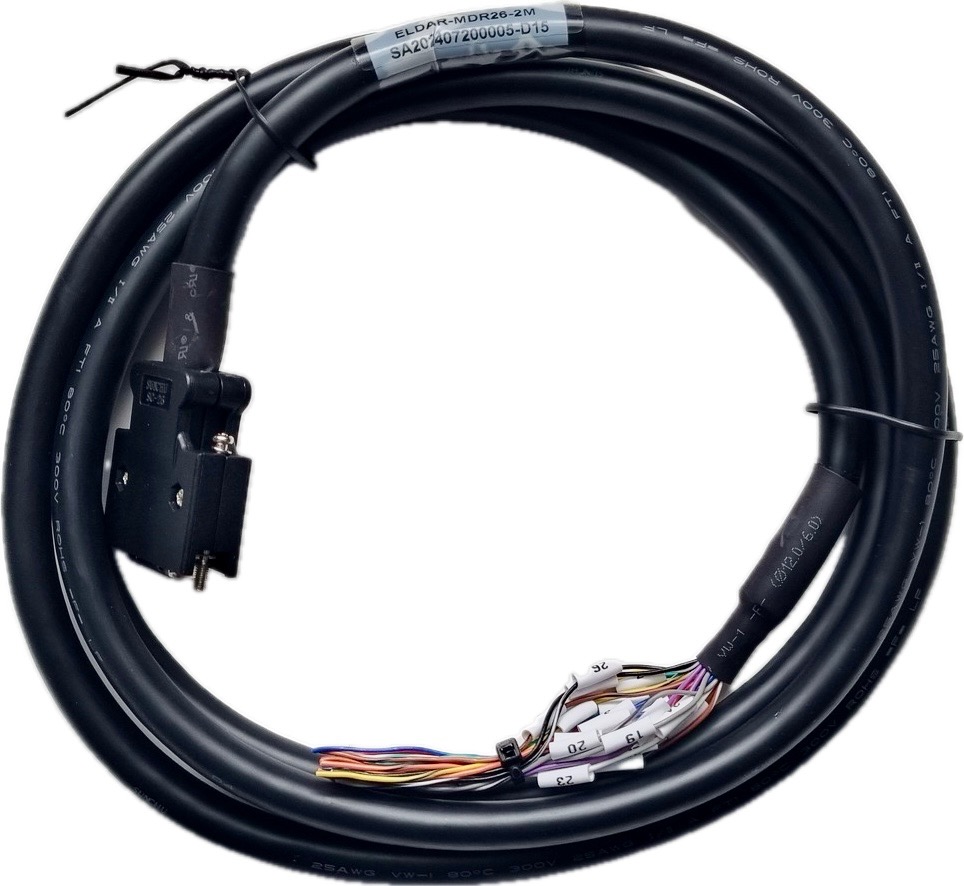

ELDAR-MDR26-2M
- 2-meter I/O Cable designed for 26pin-CN1 connector to use with ED3L/ Pronet EtherCAT and ED3L Profinet drives

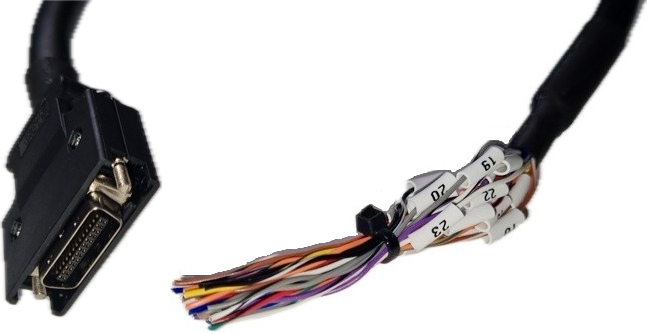

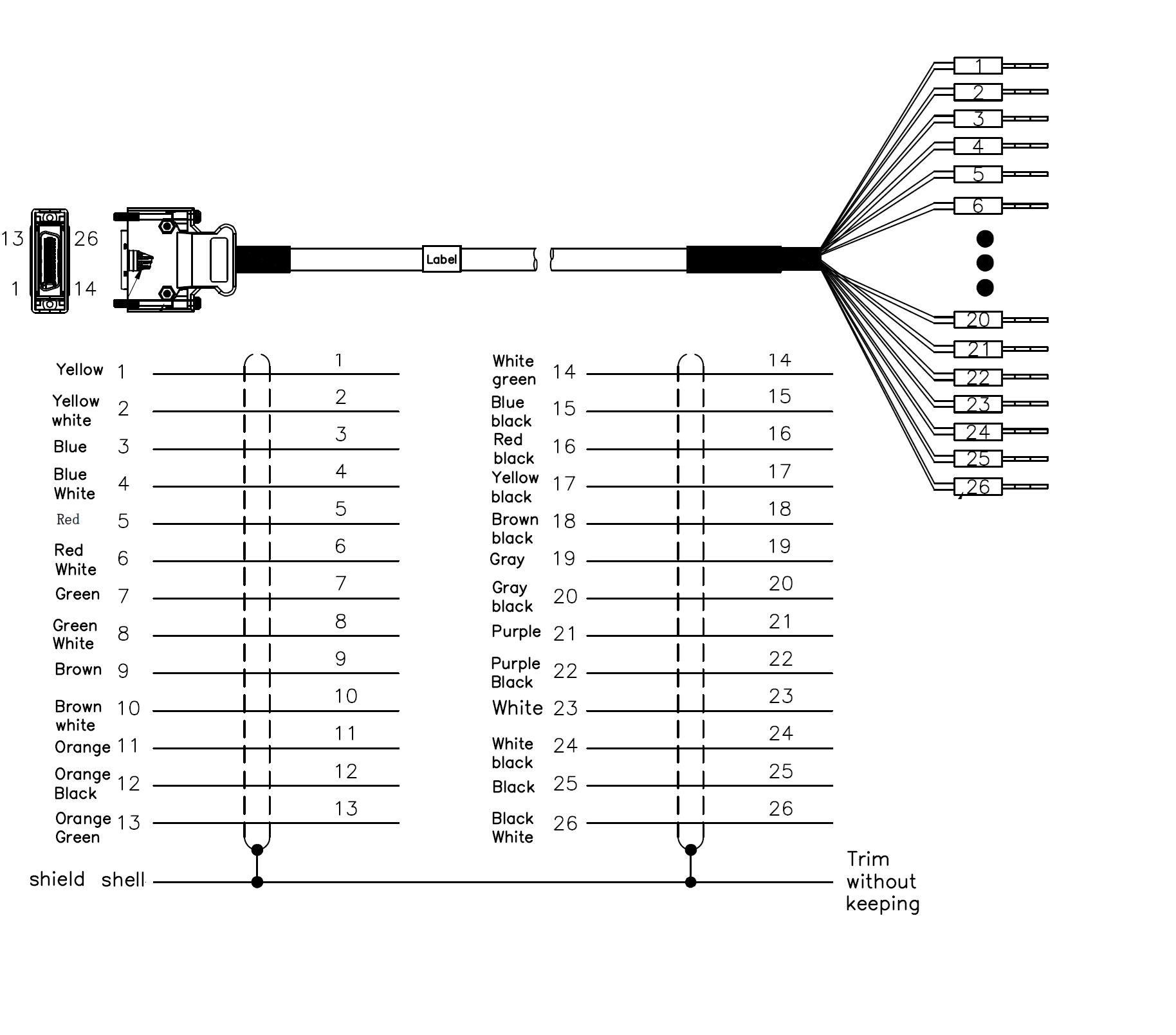

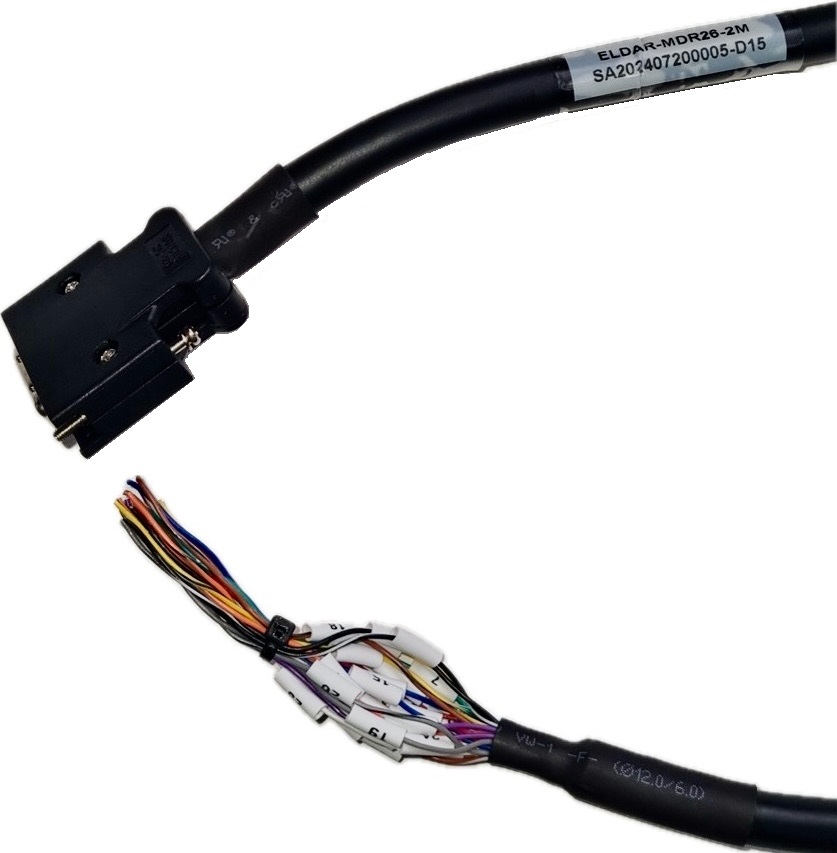

- All 26 pins of SM-26J drive’s connector are wired up in this cable, tested and labeled properly, provides pig tail flying leads at the end
This product is available & ready to ship.
15
People watching this product now!
Specification
The finished product is tested in open circuit, short circuit, misalignment, electrical flicker, etc. (QC Pass)
 Drive I/O Cable MODEL: ELDAR-MDR26-2M |
|
| Cable Specification | Black elastic PVC outer jacket, PVC insulation, outer diameter 10.5mm
|
| Single core Wires | 24AWG black single core wire 80℃ 300V UL1007 outer diameter 1.43 |
| Withstand Voltage [V] | AC 300V/40ms, leakage current: ≤3mA |
| Temperature Range [‘C] | 0-80℃ |
| Insulation Resistance (20’c) | Insulation impedance: ≥10MΩ (DC 300V/10ms) |
| Drive Model |
ED3L-xxAEA ,ED3L-xxAPA ,ED3L-xxDEA ,ED3L-xxDPA |
|---|---|
| Cable Length (m) |
2 Meters |
| Drive End |
26pin MDR Connector |
| Cable End |
Pig tail 26 flying leads |
