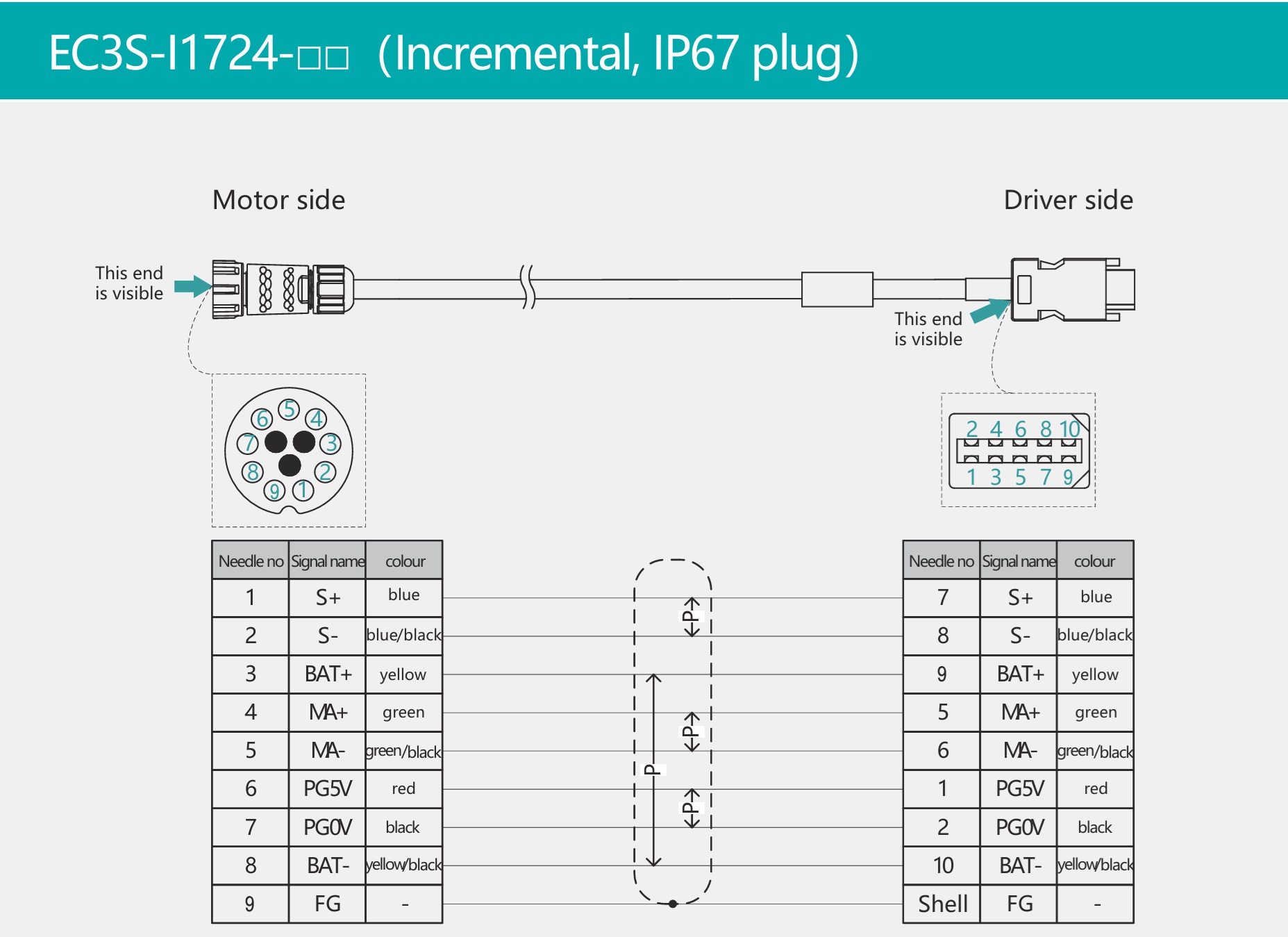

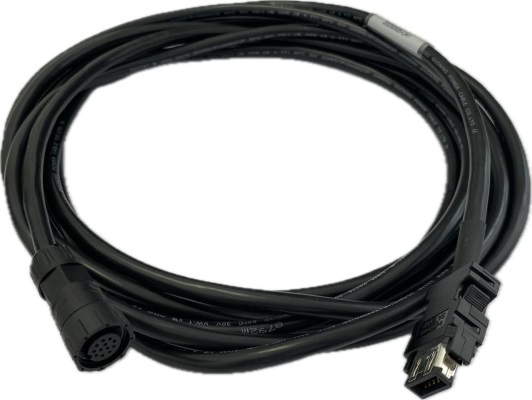

EC3S-I1724
- Incremental Encoder Cable for EM3A motors with the power size of 50w~1Kw.
- Available in 5m, 10m, 15m and 20m lengths
| Variation | SKU |
|---|---|
| EC3S-I1724-05 |
| EC3S-I1724-10 |
| EC3S-I1724-15 |
| EC3S-I1724-20 |
This product is available & ready to ship.
11
People watching this product now!
Specification
Power Cable MODEL: EC3P-I1724-nn |
|
| Marking | E527361  AWM 20041 26AWG/3P 105℃ 30V VW-1  I/II A FT1 |
| Operating Voltage [V] | 30 |
| Test Voltage | AC 500V/1min |
| Temperature Range [‘C] | -40 ~ +105 |
| Insulation Resistance (20’c) | ≥ 50 MOhm x km |
| cold bending test | Not any cracks (-20℃±2.0℃) |
| Flame retardant | passed VW-1 & FT1 tests |
| thermal shock test | Not any cracks (136±1℃) |
| Approvals | UL, CUL,CE |
| Application standards | UL758、UL1581 |
| Motor Power (W) |
850 ,1300 ,1500 ,1800 ,2000 ,2900 ,3000 ,4000 ,4400 ,5000 ,5500 ,7500 |
|---|---|
| Cable Length (m) |
5 Meters ,10 Meters ,15 Meters ,20 Meters |
| Feedback Type |
17bit abs ,23bit abs |
| Cable Type |
26AWG / 3 Pairs |
